distance transmission of high definition signal.
* Support touch screen function;
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX ……………............................ 60 meters
HDMI Input …..…………………...……............ 4k@60Hz/1080p/720p/576p/576i/480p/480i
HDMI Output …..……………...….................... 4k@60Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth ………………………………………………………………………….. 600MHz
Max baud rate ……………….…….………………….………….…………...………... 3x6Gbps
Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p
Output DDC signal …………………………………………………................. 5Volts p-p (TTL)
Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX Max working current ………………………………………...………….……………. 350mA
RX Max working current …………………………………………...…………………….. 200mA
Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..…………….………………………....…… (-15 to +55℃)
Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………….…...… 107x105x27.3 (mm)
TX Weight …..……………………………………………..………………………........…… 499g
RX Weight .................................................................................................................... 494g
Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable
distance is 10 meters.
2.Connect one HDMI cable between display device and RX Extender, the max cable
distance is 10 meters.
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between
TX and RX Extender, the max cable distance is 60 meters.
4.Connect 5V power supply to the TX and RX.
5.Plug the mouse and keyboard into the port of the receiver, and connect the port
of the transmitter with the computer if you need the KVM control function.
When you use touch screen function, Please connect one of the port of the receiver with
the USB port of the touch screen display.
6.LED indicator light
TX LED indicator light: Turn it on, green light; when there is a signal input,
the yellow light flashing.
RX LED indicator light: Turn it on, green light; when there is a signal input,
the yellow light flashing.
7.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the
receiver and transmitter respectively.（Just connect when you need it）.
Connection diagram:
Support touch screen function：
Application diagrams
HDMI extender is used in audio-visual conference, command and control center,
ticketing platform, home theater, multi-media teaching, conference system and so on.

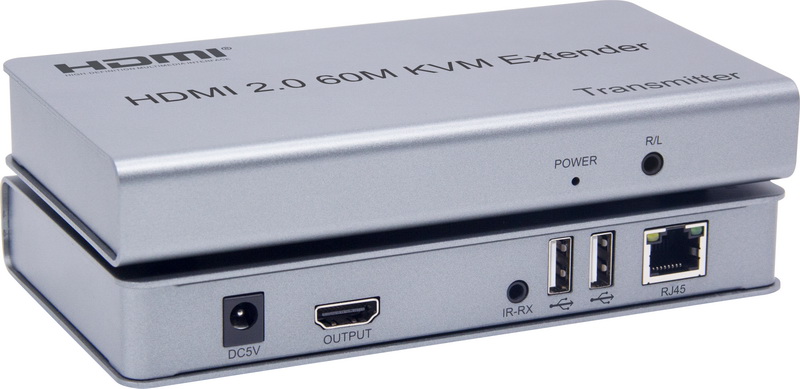

Physical interface diagram
The Package includes:
1. TX Extender 1PCS
2. RX Extender 1PCS
3. IR cable 1Pair
4. 5V/1A DC Power adapter 2PCS
5. User Manual 1PCS
