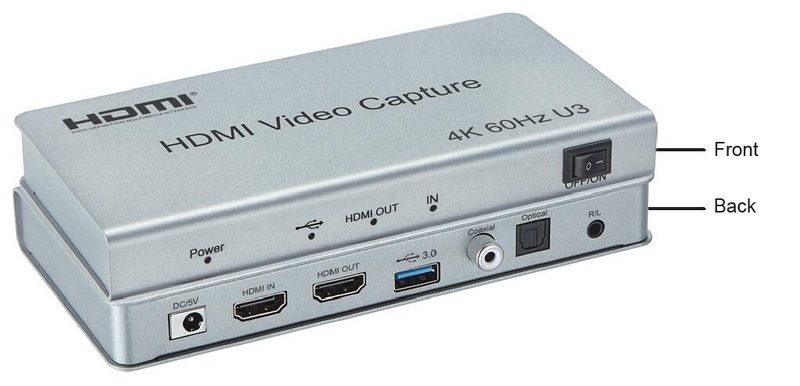

The HDMI video capture can capture the HD video and audio signal. It can display the
HD signal to the displayer or projector.It support USB storage by computer at the same
time.
The HDMI video capture also can separate the HD video and audio signal. The stripped
coaxial or optical fiber digital audio can connect with an amplifier. The max resolution can be
up to 4K/60HZ.
Features:
The HDMI video capture can capture the HD video and audio signal. It can display the
HD signal to the displayer or projector.It support USB storage by computer at the same
time.
The HDMI video capture also can separate the HD video and audio signal. The stripped
coaxial or optical fiber digital audio can connect with an amplifier. The max resolution can be
up to 4K/60HZ.
* Support max resolution 4K/60Hz
* Support the max baud rate of 6G and TMDS clock can be up to 600 MHz;
* Support deep color;
* Support AWG26 HDMI standard cable: HDMI input up to 8 meters,HDMI output up to 8
meters. (1080P and below resolution);
* Support USB 3.0 standard cable, output up to 1.5m;
* Support many capture software, such as VLC、OBS 、Amcap;
* Conform to USB video 1.5 and audio 1.0 standard.
Specifications:
HDMI resolution ……………………………………….....……........……............Up to 4K/60Hz
Support video format ………………………………..…….…………..…….............MJPG/YuY2
Support audio format………………..………..................................................................LPCM
Max bandwidth……………………………….…………………………………….…...... 600MHz
Max baud rate……………….…….………….…………………………………..…........... 6Gbps
Input cable distance..…...……….……(1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance…...............…(1080p resolution) ≤8m AWG26 HDMI standard cable;
≤1.5m USB 3.0 standard cable
Max working current………………………………………………………………….....…. 0.65A
Power adapter format …………....…. input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A
Operating temperature range………………………....…………….…………… (-10 to +55℃)
Dimension (L x W x H)………………...............…………..……………………162x80x23 (mm)
Weight…….…..……………………………………………....…………..…….………………420g
Operating and Connecting
Application diagrams
1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable
2. Connect the display device to the HDMI output of the video capture with one HDMI cable
3. Connect PC USB port to the USB output of the video capture with one USB 3.0 cable
4. Connect the 5V/1A power adapter to the video capture
5. Operation steps for USB video capture(OBS):
Operation Example as below:
Application diagrams
Connection and Operation
Stereo Out
Speaker amplifier
HDMI In
HDMI Loop out
USB cable male to male
1：Choose the input audio sampling rate to be 48KHZ
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above
Run memory: 4G RAM
1. Video capture 1PCS
2. 5V/1A power adapter 1PCS
3. 1.5m USB3.0 cable 1PCS
4. User manual 1PCS
