Introduction:

The 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the HDMI1.3-1080P signal to 120 meters or HDMI2.0 4K@60Hz to 60 meters. The purpose of the extender is to achieves long-distance signal transmission with low-cost wires.

 Features:

1:120M long distance transmission.

2: Multi-receiver cascade transmission.

3: Low power consumption, low temperature and high safety.

Physical Connection:


Operating and Connecting:

1. Connect source device with transmitter by one HDMI cable the cable max length is 10 meters.

2. Connect display device with receiver by one HDMI cable the cable max length is 10 meters.

3. Connect TX with RX by one cat5e or cat 6(recommended).the cable max length is 120 meters.

4. One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.

5. Connect the power supply to the TX and RX.

6.LED indicator:When a signal is input to work, steady blue light.

Specifications:

Length of CAT-5E/CAT-6 cable between Rx and TX…..….…..up to 120 meters

HDMI input…..………...............….........…4K/1080p/720p/576p/576i/480p/480i

Support audio format.……………......…………………………DTS/Dolby/LPCM

HDMI output…..…………….…...….....………1080p/720p/576p/576i/480p/480i

Max bandwidth……………………......……………………………………340MHz

Max baud rate……………….………….……….....……………………3.4x3Gbps

Input video signal ………….………..………..…………….…… 0.5~1.5Volts p-p

Output DDC signal ……………………...……..………………… 5Volts p-p (TTL)

Input HDMI cable distance………….…...≤15m AWG26  HDMI standard cable

Output HDMI cable distance………….…...≤15m AWG26 HDMI standard cable

TX Max working current………………………...…………………………..350mA

RX Max working current……………...………...…………………………...200mA

Power adapter format…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..………...……….…………… (-15 to +55℃)

Operating Humidity range….………..….……5% to 90%RH (No Condensation)

Dimension (L x W x H) …………….......…………………………94x84x24(mm)

TX Weight.…………………………….........…..………………………………223g

RX Weight..………………………...........……..………………………………223g

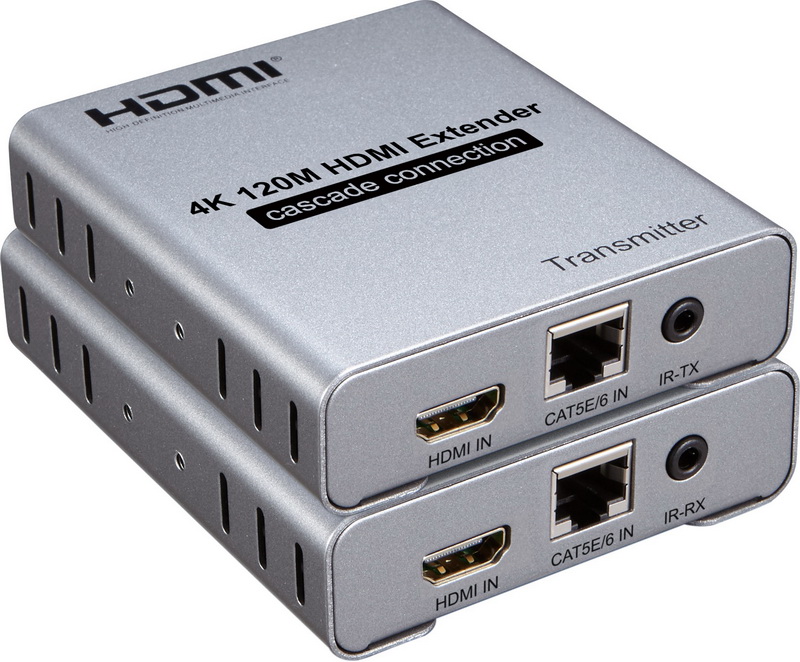

 Product interfaces:

 Transmitter:

 Receiver:

Application diagrams

HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on.

The package includes:

 1. TX Extender     x1pc

2. RX Extender     x1pc

3. IR cable         x1 pair

4. 5V DC Power adapter    x2pcs

5. User Manual     x1pc
