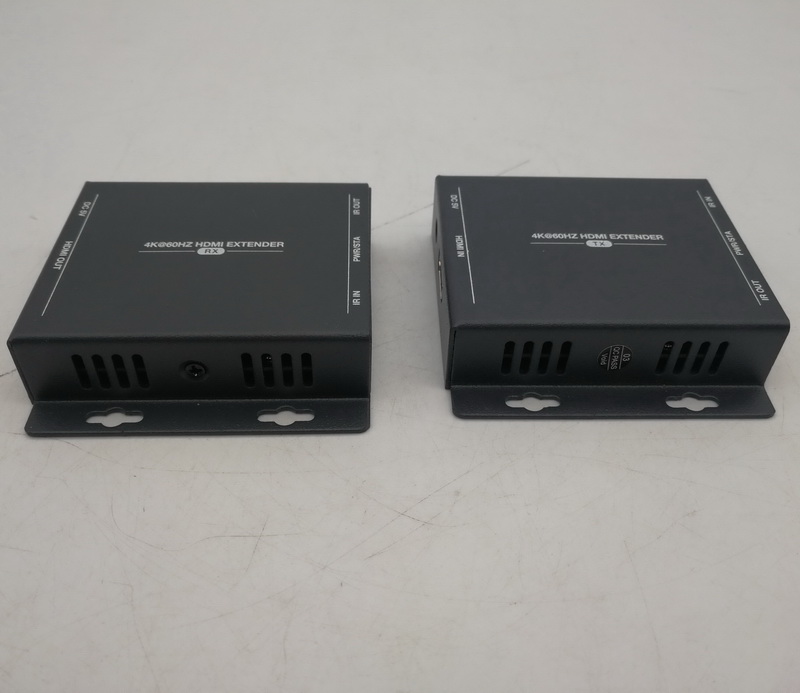

60M HDMI 2.0 Extender Support EDID and 20K-60KHz Bidirectional IR HE0060IRV2.0
Product Description
：
60M HDMI 2.0 Extender Support EDID and 20K-60KHz Bidirectional IR
1. Description The extender provides extension of HDMI signals long distances up to 60m over a single CAT6 cable. It supports high resolution up to 3840*2160@60Hz and Infrared signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2. Features
1) Transmits HDMI video and audio signals up to 60M over a single CAT6 cable; Support video resolution up to 3840*2160@60Hz signal;
2) Supports screen formats YUV444 and RGB444;
3) Compliance with HDMI 2.0 and HDCP 2.2 standard;
4) Support EDID penetration function, can match many kind display device;
5) Support 20K-60KHz Bidirectional infrared signal transmission;
6) Standard Ethernet IEEE-568B connection for easy installation；
7) High compatibility, can auto-match source and display device;
8) Built-in automatic adjustment system, make the image smooth, clear and stable;
9) Built-in ESD protection system;
10) Simple to install, plug and play;
3. Package list
1) HDMI transmitter ………………… 1 pcs
2) HDMI receiver …………………… 1 pcs
3) IR TX/RX line ……………………… 1 set
4) Power adapter …………………… 2pcs
5) User manual ……………………… 1 pcs
4. Specifications
Parameter
Description
Video
Standards
HDMI 2.0; HDCP 2.2
Maximum pixel clock
340MHz
Maximum data rate
18Gbps
Maximum resolution
3840*2160@60Hz
Connector
HDMI-A
Impedance
100Ω
IR
Interface
3.5mm earphone seat
Signal direction
Bidirectional
IR frequency
20k-60kHz
UTP
Interface
RJ45
Transmission distance
CAT6 - up to 60M at 4K@60
Other
Power supply
The power adapter: DC 5V
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
78*72*19mm
The warranty
1 year free warranty
5. Panel
Port name
Description
1
DC 5V power input
2、3
HDMI signal input/output
4、8
IR signal input/output
6
RJ45 port connect cat6
LED indicator
Description
5、9
HDMI signal status light，the lights are always on while the HDMI signal is input normally
7、10
Tx/Rx link indicator light. Lights blink when TX RX is not connected. Light is always on when Tx Rx connected.
