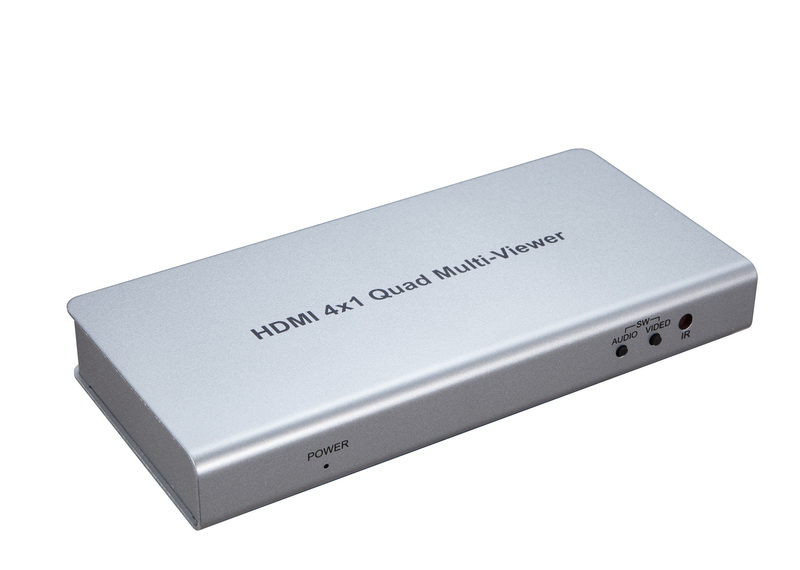

HDMI 4x1 Quad Multi-viewer

Introduction:

HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.  It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

Features :

1. Support 4HDMI input, 1 HDMI output

2. Support 4 channels HDMI signal screen segmentation

3. Support 4 channels HDMI signal seamless switching

4. Support highest resolution up to 1080P/60Hz

5. Support IR control

6. Compatible HDMI1.3a, HDCP1.2, input compatible DVI1.0 version

7. Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on

8. Support audio output format: PCM2

9. Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres

10. DC12V/2A power adapter

11. Net weight: 350g

12. Dimension (L x W x H): 19cm*9cm*2.3cm

Product interface pictures:


1:  HDMI OUT ---HDMI output

2:  HDMI IN1-4 ---HDMI input 1 to input 4

3:  DC/12V ---DC12V power input

4:  POWER---Power indicator

5:  AUDIO---Audio mode switching

6:  VIDEO---Video mode switching

7:  IR---IR receive

Connection diagram


Note:

AUDIO---Audio mode switching

VIDEO---Video mode switching

Three modes for switching:


MODE1: Switching IN1-IN4, to choose the audio output

MODE2: Switching IN1-IN4, the audio output is the same as the audio of the main interface.

MODE3: IN1-IN4, the 4 channels HDMI signal seamless switching

 Package include :

1. HDMI 4x1 quad multi-viewer  x1

2. 12V/ 2A power adapter             x1

3. IR cable                          x1

4. Remote control                    x1

5.User manual                       x1
