4Kx2K HDMI1.4 Splitter 1x10 Support EDID and CEC Built-in IR Function

INTRODUCTION

This 1x10 HDMI Splitter uses a single HDMI source,accessing to ten HDMI sinks. It allows one HDMI device to be split easily to ten HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840x2160/30Hz.

This splitter supports EDID management function, comes with ten kinds of EDID mode, the users can choose according to their own needs. In addition, this product is also built-in IR extension function, can work with our HDMI repeater which has IR-RX receiving the IR command to control the source.


FEATURES

1. Support HDMI 1.4b ,HDCP1.4

2. Support 3D video format

3. Support CEC (only output1)

4. Support high resolution up to 3840X2160/30Hz

5. Support highest rate of 3.4G and TMDS clock can be up to 340 MHz

6. Support 8/10/12 bit deep color

7. Support AWG26 HDMI standard cable,input up to 5 meters ,output up to 10 meters.

8. Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

9. Built-in IR extension function(via the IR-RX of HDMI repeater to control the HDMI sources)

10. Support serial port online upgrade

11. Support EDID management

12. 12V/2A power adapter

Specifications:

HDMI version  ……………………………………………………………………………. HDMI 1.4b

HDCP version  ……………………………………….……………………………………. HDCP 1.4

HDMI resolution ……………………………….. ……….. ………..…………up to 3840x2160/30Hz

Support video format ………………………………..…………………………8/10/12bit Deep color

Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………….340MHz

Max baud rate……………….…….………………….………………………………………..3.4Gbps

Input cable distance.…………………………………………….≤5m AWG26 HDMI standard cable

Output cable distance…………………………………………≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………………....1.4 A

Power adapter format……………….….input AC (50HZ, 60HZ) 100V-240V; output: DC12V/2A

Operating Temperature range……………………………..…………….……………(-15℃ to +55℃)

Dimension (L x W x H)………………...............…………..………………………….375x89x22(mm)

Weight…….…..………………………………………………………..…….……………………780g

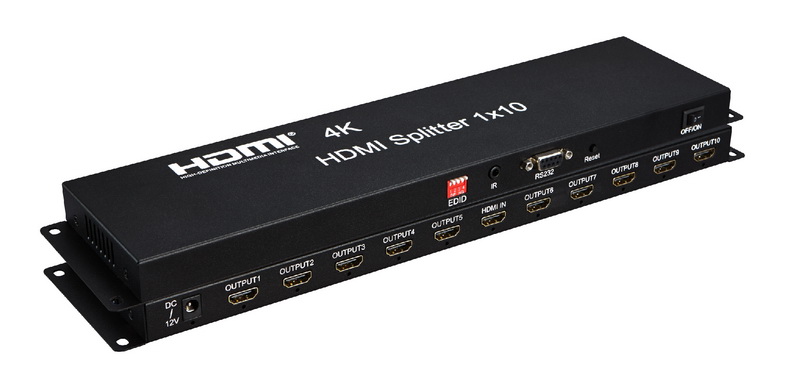

 Product interface pictures:


①: Power adapter indicator

②: 12V Power Interface

③: LED Output indicator

④: HDMI output

⑤: LED Input Indicator

⑥: HDMI input

⑦: DIP switch,using for EDID management

⑧: IR TX Expansion Interface

⑨: RS232 port

⑩: Reset button

⑪: Power switch

DIP EDID Switch Description:

DIP 1    2   3   4

    X  0  0  0    :copy EDID only from output 1
          X   0   0    1    : compatible with minimum resolution of the TV display
          X   0   0    0    : 4Kx2K (YUV420)

    X   0   0    1    : 4K 30Hz 5.1ch
          X   0   1    1    : 4K 30Hz 2 ch
          X   1   0    1    : 1080P 3D 2 ch
          X   1   1    0    : 1080P 2D 2 ch

    X  1   1    1     : 1080P 2D 5.1ch

1 is used for upgrades, 1 is upgrading mode, 0 is normal operation mode

Working Mode Description：

There are two working modes for product, normal operating mode and upgrade mode, which is decided by DIP EDID switch 1, 1 is upgrade mode,0 is normal operating mode.

IR extension description:

There is an IR TX Extension port, it can work with an optional HDMI repeater which works as IR-RX and IR extended via HDMI cable.

Connection and Operation:

1: connect the HD source to the splitter input with one HDMI cable

2: connect the splitter output to the displays with 10 HDMI cables

3: connect 12V/2A power adapter to the splitter

4. Reset button: it’s a Reset key for system Reset.

Package include :

1. HDMI splitter       x1pc

2. Power adapter      x1pc

3. User manual        x1pc

4. HDMI repeater (optional)
