This 1x4 hdmi splitter use a single HDMI source,accessing to multiple HDMI sinks .It allows one HDMI device
to be split easily to four HDMI compatible monitors or projectors.In addition,It can also be placed at the end of
a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.
Features :
1. Support HDMI 2.0 ,HDCP2.2
2. Support 3D video format
3. Support CEC(only HDMI Output1)
4. Support high resolution up to 3840X2160/60Hz
5. Support highest rate of 6 G and TMDS clock can be up to 600 MHz
6. Support 8/10/12 bit deep color
7. When input Resolution is 1080P :
input up to 10metres with AWG26 HDMI standard cable , output up to 15metres with
AWG26 HDMI standard cable
When input Resolution is 4K :
input up to 8 metres with AWG26 HDMI standard cable , output up to 8 metres with AWG26 HDMI standard cable
8. Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
9. 5V/1.5A power adapter
Specifications:
HDMI version
HDMI 2.0
HDMI resolution
Up to 3840X2160/60Hz
Support video color format
8/ 10/12bit deep color
Support audio format
DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth
600MHz
Max baud rate
6.0 Gbps
Input cable distance
1080P: ≤10m AWG26 HDMI standard cable
4K : ≤8m AWG26 HDMI standard cable
Output cable distance
1080P: ≤15m AWG26 HDMI standard cable
4K : ≤8m AWG26 HDMI standard cable
HDMI input
1 HDMI
HDMI output
4 HDMI
Max working current
560mA
Specifications of power adapter
Input:AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1.5A
Operating Temperature range
(-15℃ to +55℃)
Operating Humidity range
5% to 90%RH (No Condensation)
Dimension (L x W x H)
178x66x20 mm
Weight
220g

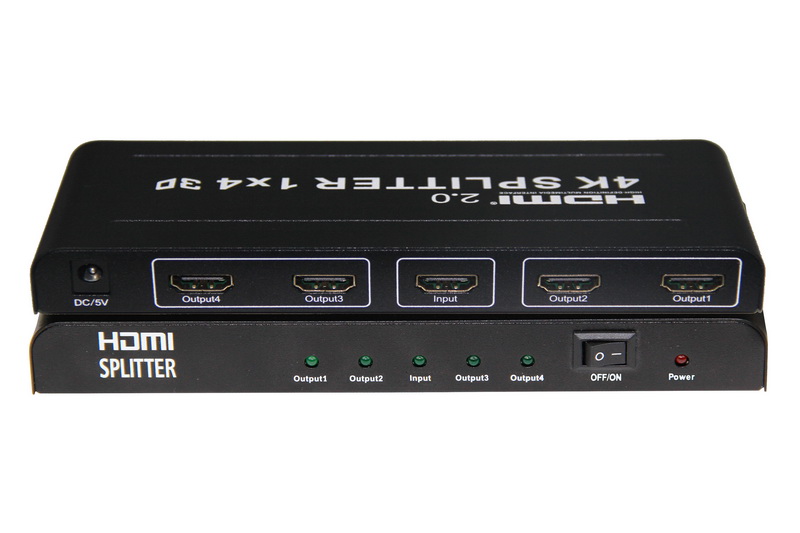

Product interface pictures
Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 4 hdmi cables
