The Extender uses twos way single cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

FEATURES

1. Support HDMI 1.4a

2. Support 3D

3. Support highest video resolution 1080p/60Hz

4. Support 3.4Gbps data rate and TMDS clock up to 340MHz

5. Support 8/10/12 bit deep color

6. Support AWG26 standard HDMI cable, input up to 10 meters, output up to15 meters

7. Support twos way cable extender by cat 6

8. No loss of quality

9. Install in minutes

10 Need DC5V/1A power supply

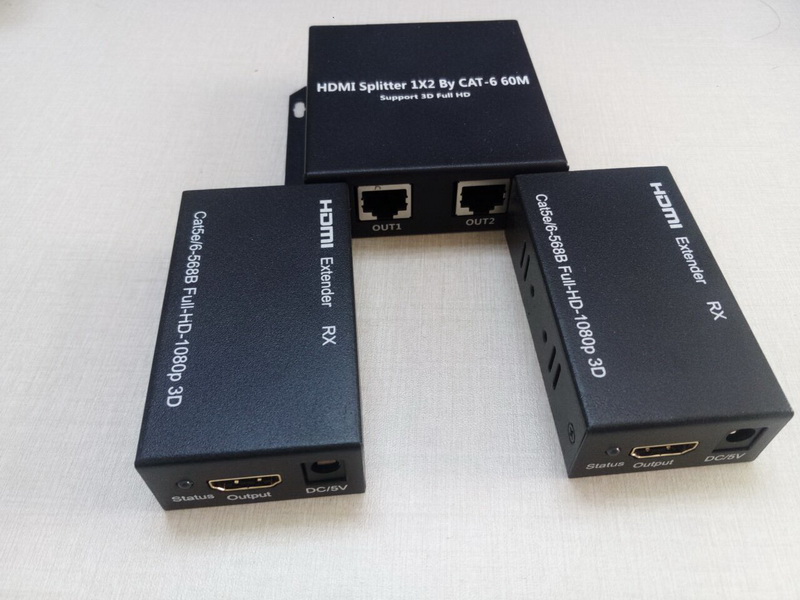

Physical Connection Showing Picture:


Interface:

RX


TX:

Operating and Connecting:

1. Connect one HDMI cable between source device and TX (Transmitter) Extender, the max          cable distance is 15 meters

2. Connect one HDMI cable between display device and RX (Receiver) Extender, the max        cable distance is 20 meters

3. Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX (Transmitter) and RX (Receiver) Extender, the max cable distance is 60 meters

4. Connect 5V power supply to the TX (Transmitter) and RX (Receiver). The Power LED light

device connects well.

 SPECIFICATIONS:

  Length of CAT-5E/CAT-6 cable between RX and TX ……………...............Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio input.……............................…DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio output...……. ……………….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………340MHz

Max band rate……………….…….………………….………….………………………3.4Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input HDMI cable distance …….…………..........….. ……≤15m AWG26 HDMI standard cable

Output HDMI cable distance............................................ ≤20m AWG26 HDMI standard cable

TX Max working current ………………………..……………...………….………………...510mA

RX Max working current …………………………………………...………………………...100mA

Power adapter format………...………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

TX Weight…..……………………………………………..………………………........………164g

TX Dimension (L x W x H)………………………….……………………………93x80x25 (mm)

RX Weight........................................................................................................................112g

RX Dimension (L x W x H)………………………….……………………………80X45X23 (mm)

The Package includes:

1. TX Extender:1 pcs   RX Extender:2 pcs

2. 5V DC Power adapter  3pcs

 3 .User Manual

Notes:

Please use the machine based on the instruction listed to keep long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohibited.

4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.

5. Please turn the power off when the machine is not used for long time.

6. Please do not open the cover and do not touch inside parts.

7. Please use the original factory power adaptor.

Before power on, please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
