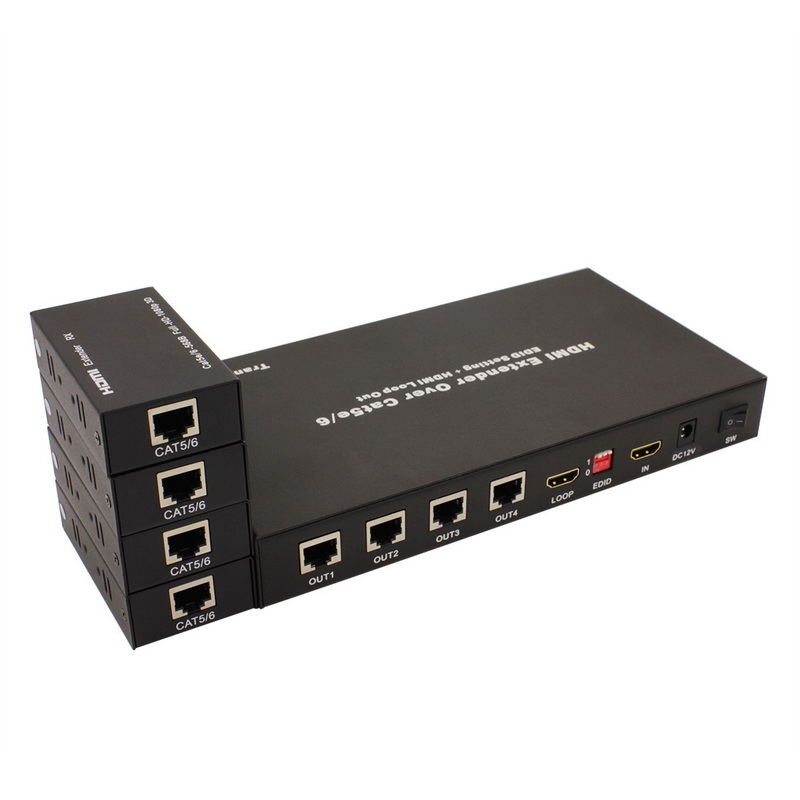

1x4 HDMI1.4 Splitter Over 50M CAT5e/6 Cable Extender With LOOP And EDID

FEATURES

1. One HDMI input signal split to five HDMI sink devices(One is the LOOP output, the other four outputs is the RJ45 output)

2. Support 3D 1080P

3. Support deep color 30bit, 36bit

4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

5. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

6. Support signal retiming

7. Support output up to 50metres CAT6 cable

8. No loss of quality

9. Installs in minutes

The accessories with the machines lists as below:

1. 5 x Power Adaptor

2. 1 x User manual

3. 1 x Extender Splitter

4. 4 x RX

Physical Connection Showing Picture:


Figure 1.0 Front Panel Showing Picture

 PW:  power LED           SIG: HDMI input LED             LOOP: HDMI output


Figure 1.1 Rear Panel Showing Picture



CAT1—4 : RJ45 output 1---4      EDID:EDID choose

IN: HDMI input                  LOOP: HDMI output

DC: 5V power input

Operating and Connecting:

Using HDMI Splitter and Receiver pairing, you can achieve the transmission of HDMI signals to 50 meters, through the CAT6 Cable.

SPECIFICATIONS:

HDMI resolution ………………………...... ...... ..3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..2250MHz

Max baud rate……………….…….………………….………………………………….. ….6.25Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤10m AWG26 HDMI standard cable

Output cable distance…………………………………….…...………….…...≤60m CAT6 cable

Max working current……………………………………………………………5V/1700MA

Power adapter format..Input: ……………... ……..……..……...AC (50HZ, 60HZ) :100V-240V

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohibited.

4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.

5. Pls turn the power off when the machine is not used for long time.

6. Pls do not open the cover and do not touch the inside parts.

7. Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO

Trouble Description

Cause and Ways to deal with

1

 Non-Power-Connected

1.Check if the power adaptor head is truly and correctly inserted the power socket.

2. Check the power switch if it is in on status.

2

No Picture

1. Pls to make sure that the TV is on and has been connected with the machine.

2.To check if the signal source is on and well connected.

3.Check the system connection quality.

4.Check if the line is all good quality.

5.Check the cable quality

3

Obscure Picture

1.To try again to connect the cable to be free from the unsuccessful connection.

2.HDMI Cable Quality
