Seamlessly HDMI 1.4 Switcher 4x1 with Picture-in-Picture (PiP) function HW0401P
Product Description
：
Seamlessly HDMI 1.4 Switcher 4x1 with Picture-in-Picture (PiP) function
Introduction
This Seamlessly HDMI 1.4 Switcher 4x1 makes the user gets live picture-in-picture (PiP) video preview of each connected device, which makes it simple and intuitive to switch among the cable box, the disc player, the game console, any other HDMI-connected sources. It supports all HD formats including 720p,1080i,1080p,4Kx2K, thus it’s more suitable for home theater systems.
Features
1. Support HDMI1.4b
2. Support 3D
3. Support video resolution up to 4K x 2K @ 30Hz, 1080p @ 120 Hz, and 1080P 3D @ 60 Hz
4. Support 3.4Gbdata rate for tmds clock up to 340Mhz
5. Support 24/30/36 bit deep color
6. Supports single and high definition display for multiple sources, such as DVD Players and Stellite Receivers, Digital Projectors, A/V Receivers, TV Boxes
7. 5V/1A power supply
8. Picture-in-picture (PiP ) function
9. Switched seamlessly, switch one input source to the other input source quickly
Specifications
HDMI version
HDMI 1.4b
HDMI resolution
UP to 4K x 2K @ 30Hz
Video format
24/30/36 bit deep color
Support audio format
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth
340MHz
Max baud rate
3.4Gbps
Input cable distance
≤15m AWG26 HDMI standard cable
Output cable distance
≤15m AWG26 HDMI standard cable
Max working current
300mA
Power adapter format
input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating temperature range
(-15 to +55℃)
Dimension(LxWxH)
178x58x20 (mm)
Weight
220g
Notes
1. When the Resolution is over 1080P,the switcher does not support PiP function.
2. What this manual said “4K mode “ refers to a resolution higher than 1080P @ 60Hz.
3.In the non-4k mode, when a new signal source put in, it will appear a new source of input preview on the left of the screen)
4.In PiP function, the 3 small screen is with a fixed size on the left
5.In PiP function, the positons of small pictures are corresponding fixed with their input sources
New special features:
1. Switched seamlessly, switch one input source to the other input source quickly
With InstaPor technology, this product achieves seamless switching among input sources. and gets big advantages compared to the precious switcher which needs to wait for a period of time in the switching process.
2. Picture-in-picture (PiP ) video preview

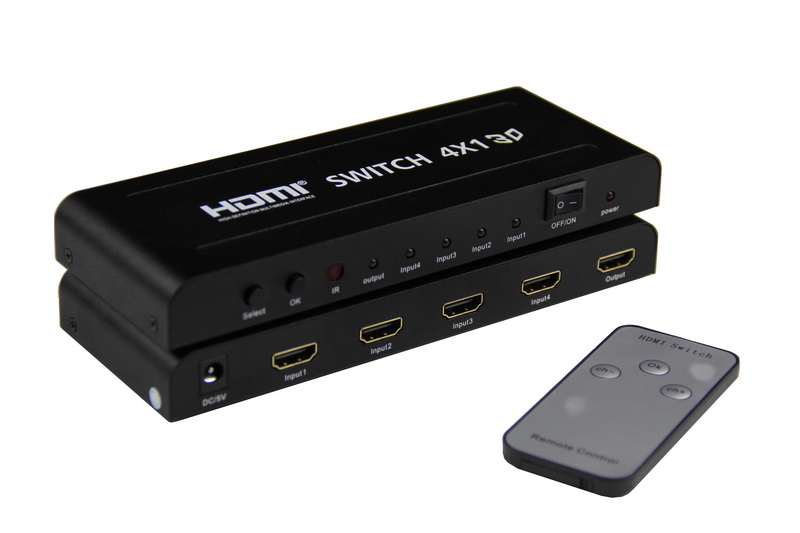

Button on unit :
This product has two buttons: “OK” button and “Select” button.
“OK” button has a pop-up interface and determine the PiP function .
“Select” button has a function to select input source. Press“Select” button and “OK” Button to switch the input source .
Keys on remote Control :
There are three remote control keys : Ok , ch+, ch-
“Ok” key has a pop-up interface and determine the PiP function .
Ch+ ,ch- keys are as the selection keys
Key on remote control operating Instructions:
1, Press the “OK” key, TV displayer will appear the 3 pcs small screens on the left and the main display screen
2, press “ch+” and “ch-” to select , and press the “OK” key to confirm, and the main display screen will quickly switch to the selected input source.
If there is no operation over 25 seconds，the small screens will disappear automatically.
Physical Connection Showing Picture
Operating and Connecting
Step 1:Connect the HDMI source device and HDMI switcher input ports with HDMI cables
Step 2:Connect HD displayer device (monitor or projector) and HDMI switch output port with HDMI cables
Step 3:Connect 5V/1.5A power adapter to the HDMI switch.
